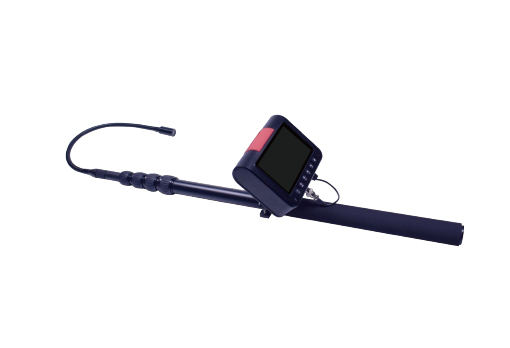

VD30 infrared video telescopic scope is an important security equipment, mainly used in anti-terrorism, security, rescue and other tasks. It is easy to operate, flexible to use, low noise and so on. The probe can be manually bent to the desired Angle, without dead Angle observation.
700-wire color camera with 720P output in true color.
The 5 "color LCD display reflects clear and eye-catching images and is fixed on the display control stick.
Standard 16GTF card, maximum support 64G SD storage records, can take photos and videos.
The lightweight telescopic rod can be stretched meters long, fixed at any position, the telescopic rod adjustment range of 1.1-2.5m, the shortest installation length of 1.1m.
The high capacity lithium battery ensures continuous operation of the instrument.
Lightweight and portable design. Ability to adapt to multiple environments. Multi-level and multi-angle comprehensive inspection.
Product Model | BQX-VD30 |
Telescopic Rod | |
Minimum Retracted Length | ≤0.67 m |
Maximum Extended Length | ≥3 m |
Length Control | Fixed at any position within the telescopic range |
Internal Transmission Line | Built into the telescopic rod |
Flexible Rod | |
Front Camera Flexibility | Can be curled in any direction |
Bending Angle | 360-degree space in any direction |
Camera | |
Lighting Source | Infrared light source |
Infrared Camera | 1/3 inch color infrared camera, interchangeable with different diameter cameras |
Resolution | ≥700 lines |
Pixels | 1 million pixels |
Lens | 0.5 mm F1.2, 90° |
Minimum Illumination | 0.2 Lux |
Display | |
Display Size | 5-inch LCD screen, horizontally rotatable |
Functions | Real-time display, photo, video, and storage capabilities |
Operation Mode | Button switch |
Compression Ratio | H.264 |
Storage Card Capacity | Standard 16 GB, upgradeable to 64 GB |
Interfaces | USB 2.0 / AV-OUT, wired signal transmission |
Battery | |
Supply Voltage | 12 DCV |
Operating Time | ≥3 hours |
